Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

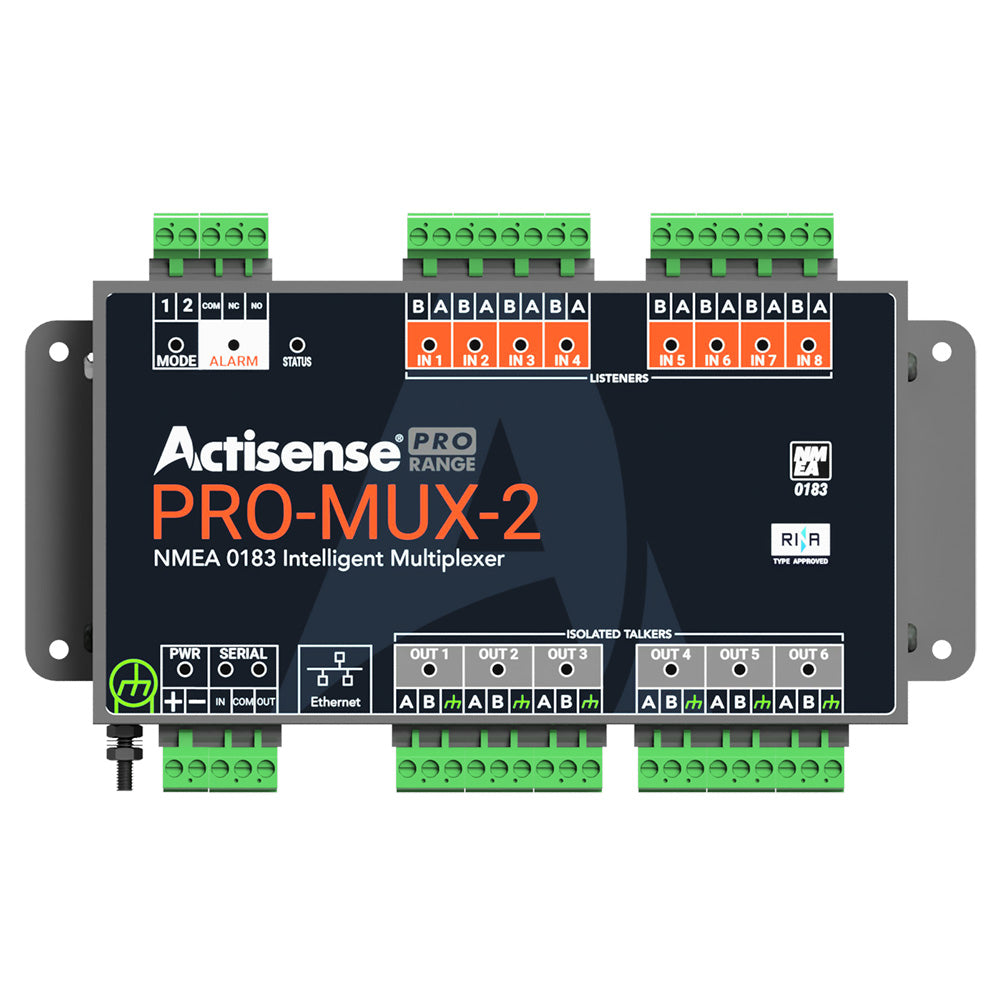

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.
The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.
The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.
Features:
8 OPTO-isolated NMEA 0183 inputs
6 ISO-Drive NMEA 0183 outputs
Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
0183 streaming via Ethernet
Alarm output (N/O and N/C contacts)
Designed for 12- and 24-Volt supply
Isolation to battery supply
Configurable input and output baud rates for rate conversion
Data combining from any input to any output
2 independent Autoswitch virtual inputs with priority
Advanced sentence-based filtering / routing
Diagnostic LEDs on all inputs and outputs
Alarm, mode and Bi-colour Status LED’s
2-part pluggable connector system supports both screw and screwless terminals
DIN rail or Panel mountable
Advanced statistics are available via a Web Browser
Quick and easy to install
Configuration using standard web browser, no PC operating system compatibility issues
Advanced features solve NMEA 0183 data routing problems
Fully isolated with ISO-Drive technology for peace of mind
Easy firmware updates makes the device future-proof
Technical Specifications:
Power Supply
Input Supply Voltage - 9 to 35 V DC
Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
