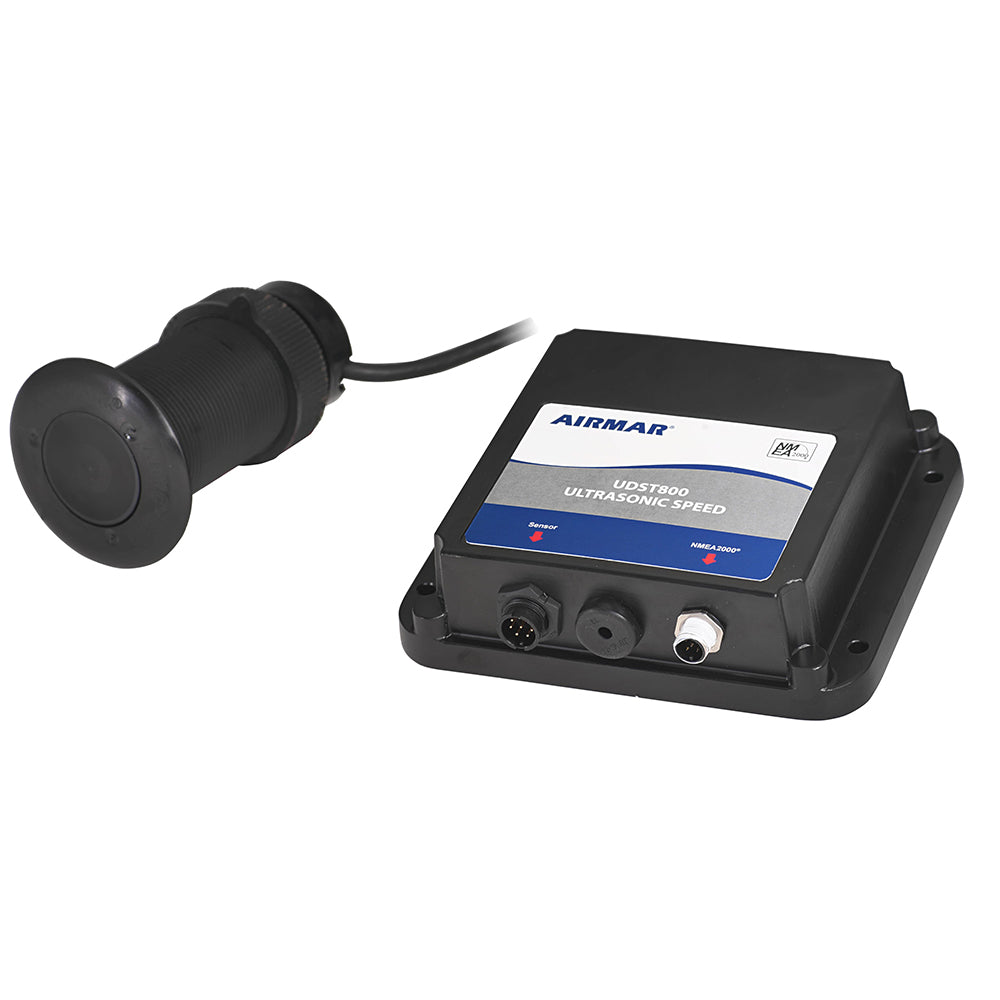

The UDST800 just turned your maintenance time into more cruising time…and made your boat smarter too. Ultrasonic speed, depth, and temperature in one single housing with no moving parts make this sensor high precision, low maintenance solution for use on power and sailboats of all types and sizes. Say goodbye to paddlewheel maintenance and hello to Smart technology, from the company that invented the Smart™ Sensor.
Features:
Ultrasonic Depth, Speed and Temperature in one housing
Precise readings at high speeds ideal for powerboats, cruising, and sailing
Data Update Rate: up to 10 x per second
Advanced filtering & sampling rates for increased accuracy at all speeds
Adapts automatically to boat speed, water depth, and water clarity keeping speed-accuracy consistent
Correlation Pulse Repetition Frequency: 0.5 kHz to 12 kHz (varies with speed)
Speed Range: 0.1 to 50 knots (.1 MPH to 57 MPH)
Available Outputs: NMEA2000®
Water Temperature Range: -4°C to 40°C (32°F to 104°F)
Depth: 235 kHz
Depth Range: Minimum 0.6 m ( 2'), Maximum 100 m (328')
Supply Voltage—NMEA2000®: 9 VDC to 16 VDC
Supply Current: 80 mA - 200 mA, Average 125 mA @12VDC
Thru-Hull Housing Material: Plastic (bronze or stainless steel optional)
Thru-Hull Housing Diameter: 51 mm (2")
CE Compliant: Yes
Retrofits into AIRMAR P617V housing
