Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC [3135]

Save $115.90

Price:
Sale price$309.95 Regular price$425.85

Description

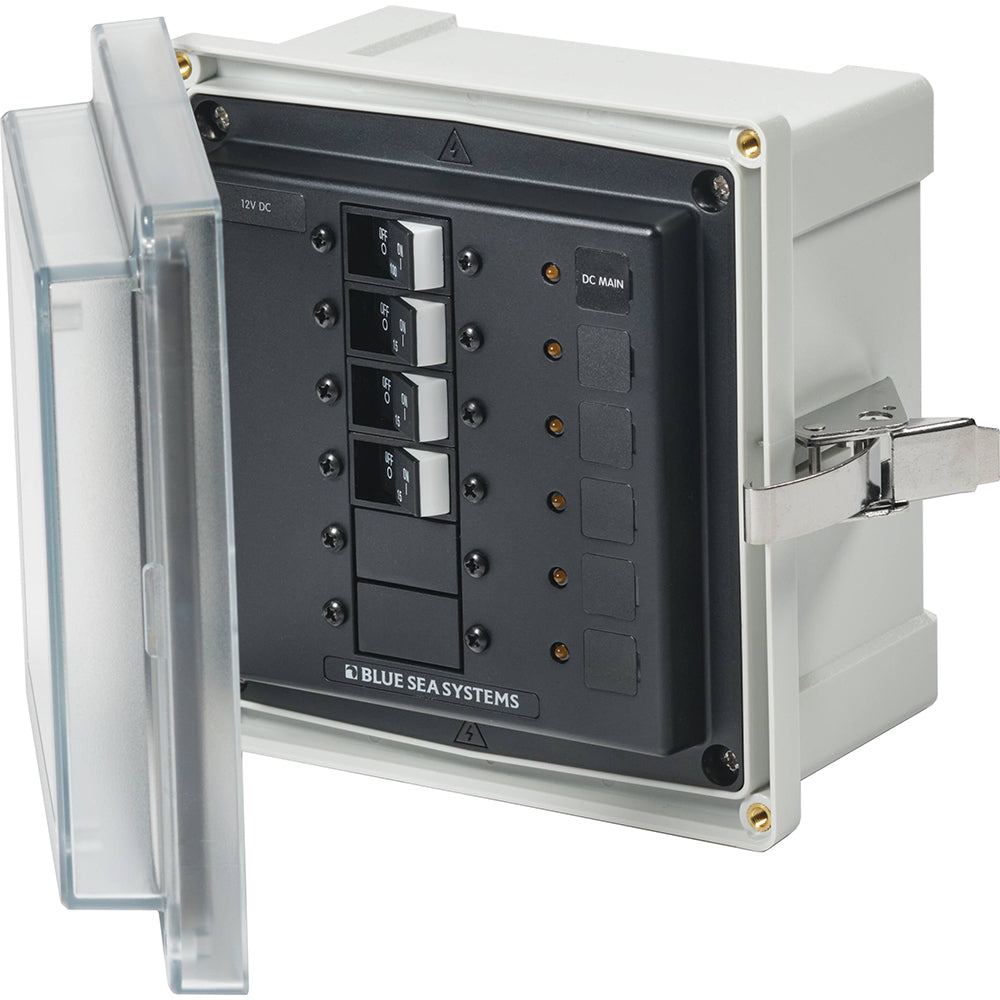

3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DC

The 3135-panel enclosure for DC circuit breakers and other large frame devices.

Features:

  •  Blank apertures for custom breaker loading
  • Glass-filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for backlighting and ON indication

Technical Specifications:

  • Circuit Breaker Type - 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
    • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
    • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
    • LEDs Installed - 6 x Amber ON indicating 12/24V DC

In the Box:

  • 3135 Enclosure
  • Glands x 6
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual


Quick Guide (pdf)
Brochure (pdf)
