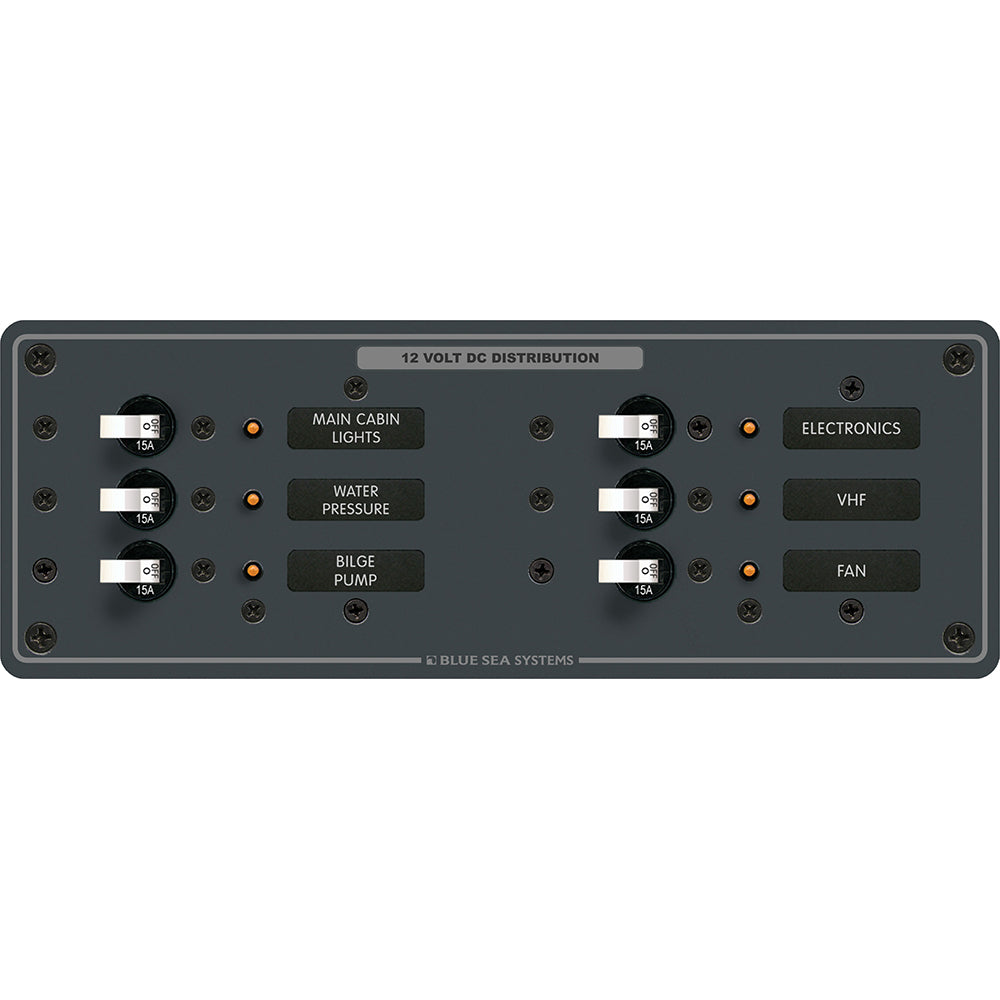

8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Positions: 6
- Nominal Voltage: 12v/24v
- Maximum Amperage: 100A per bus
- Height: 3.75"
- Width: 10.5"
- Depth: 2.5"
- (6) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Max Breaker Quantity: 6
- AC/DC: DC
- Voltage: 12/24v
- Box Dimensions: 5"H x 9"W x 12"L WT: 2.3 lbs
- UPC: 632085080969
Owner's Manual (pdf)
