Shakespeare 5018 152" Galaxy VHF Antenna [5018]

Save $167.04

Price:
Sale price$582.95 Regular price$749.99

Description

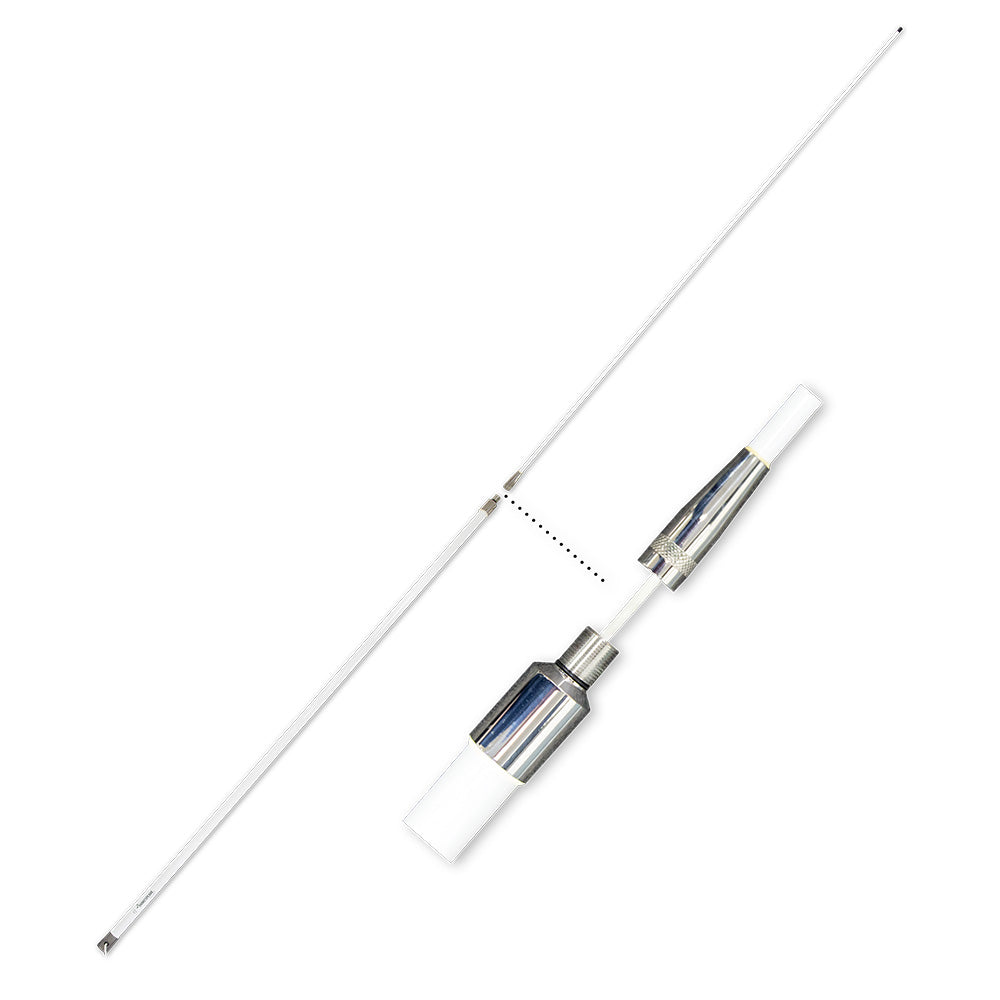

Shakespeare Galaxy Style 5018

15'2" VHF 9dB Gain

Phased 1/2 wave elements in a collinear array with choking sleeve to suppress cable radiation

This highly sophisticated design is outstanding for long distance communications. Extra rugged for salt water durability, and stability in high seas. Surprisingly light weight.

  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread

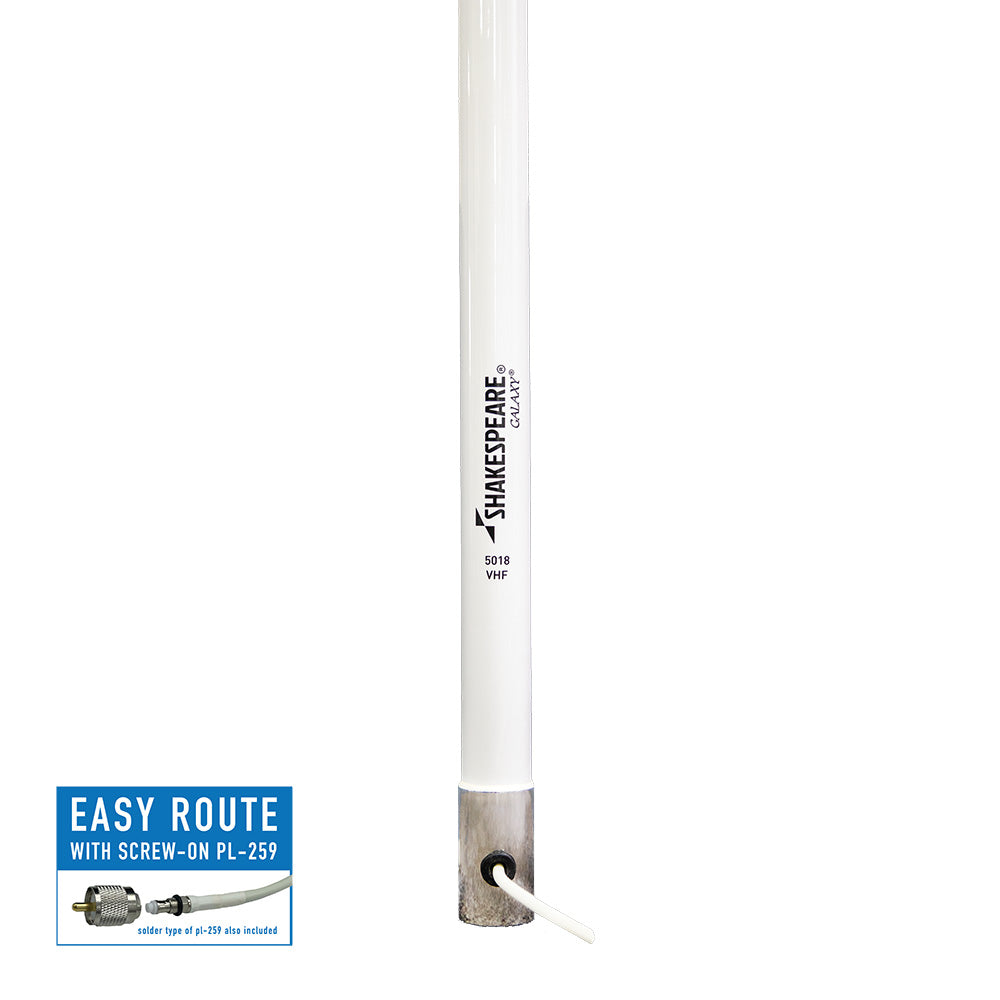

  • 20' RG-8/X low-loss cable plus a PL-259 connector
  • Suggested Mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
  • Two sectiions
  • 5 Year Warranty

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: (within 2.0:1 VSWR) 3 MHz
  • SWR: 1.5:1 at 156.8 MHz
  • Max Input (Watts): 150W
  • DC Ground: NO
  • Height (Feet): 15'2"
  • Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 180"
  • Box Dimensions: 4"H x 4"W x 95"L WT: 5.3 lbs
  • UPC: 719441200091

Brochure (pdf)
